Canpar Courier is a one-storey 102,898 sq.ft. warehouse with a 5,000 sq.ft. office area that includes washrooms, cafeteria, boardroom, reception area, and individual offices.

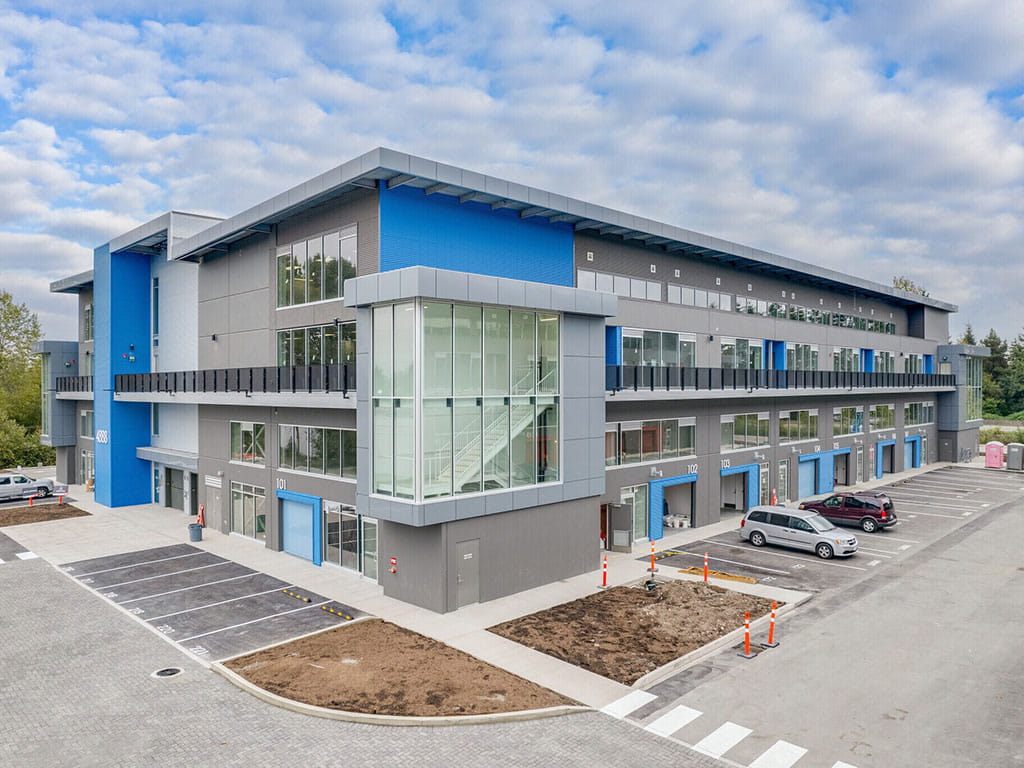

Vanguard Industrial consists of two concrete tilt-up multi-storey industrial buildings with a hollow core second floor system.

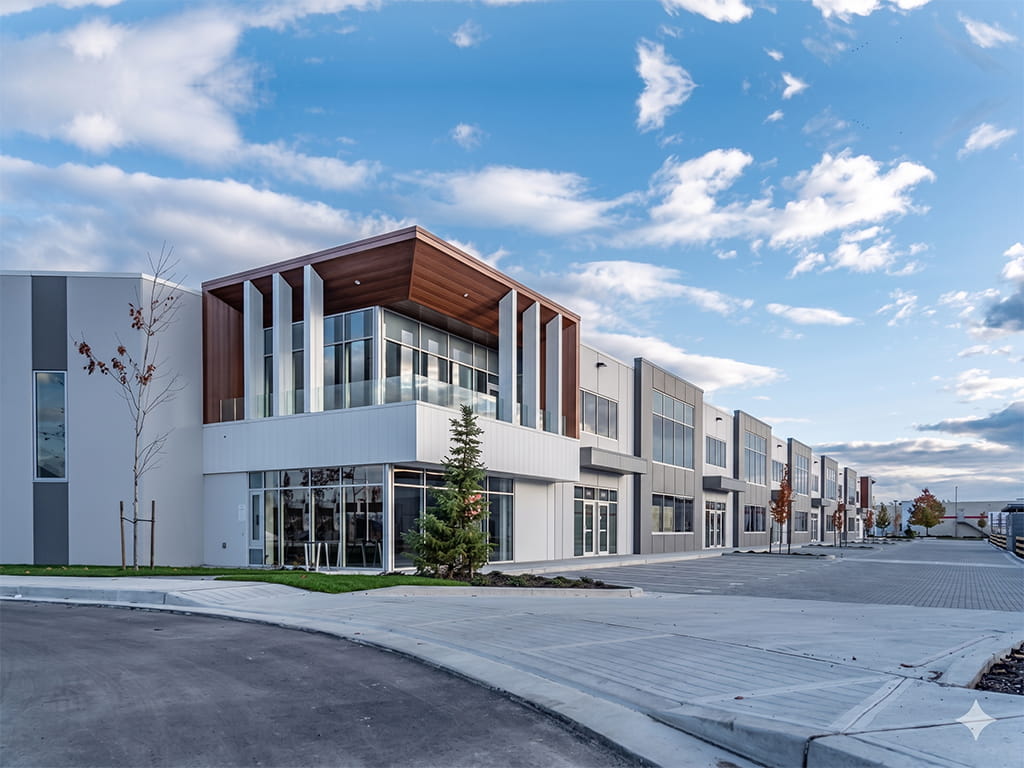

This development is the first stacked industrial development with two modern designed commercial and industrial buildings. Each building has two levels with a large mezzanine in each unit.

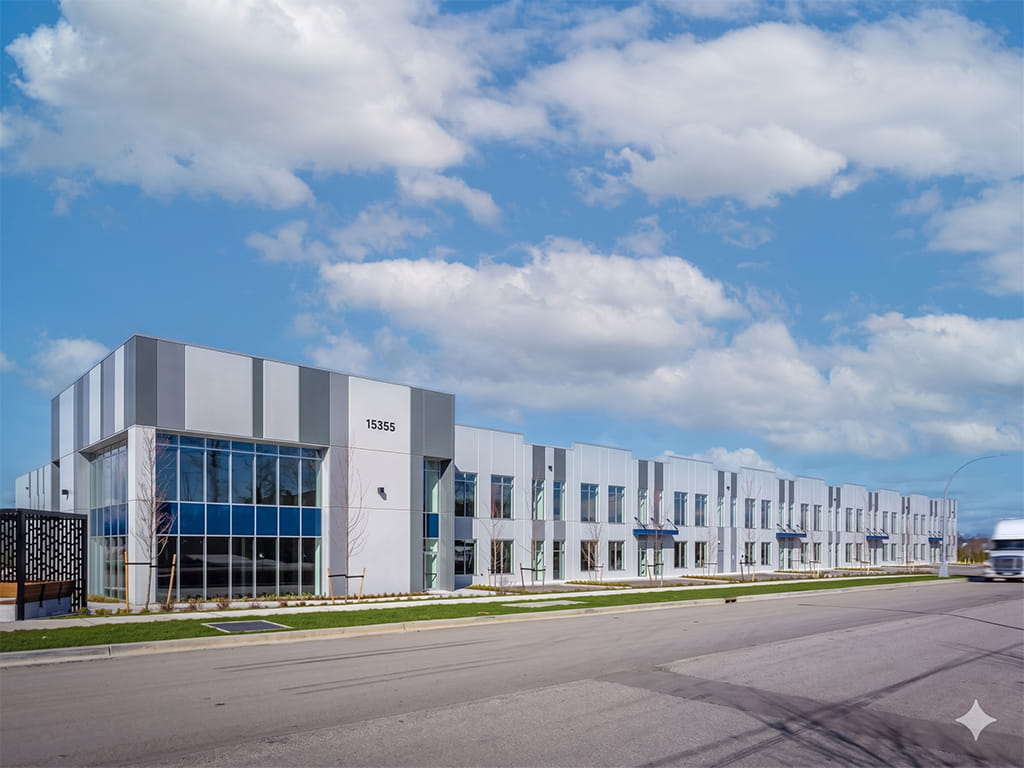

This development consists of approximately 71,000 sq.ft. concrete tilt-up multi dock loading warehouse with 17,150 sq.ft. second floor office space in the East Newton industrial area in Surrey, BC. The gravity system is provided by the tilt wall panels to the perimeter of the building with a combination of internal structural steel framing consisting of beams and columns supported off reinforced concrete foundations and internal tilt wall panels supported off strip and pad foundations providing support to the open web steel joists and metal roof decking. The ground floors consist of 7” thick slab on grade. Tilt wall panels to the exterior and interior of the buildings provide the lateral support system.
The second-floor structure was constructed using open web steel joists and steel beams supporting the composite metal deck and concrete floor slabs. A combination of structural steel braces and the tilt wall panels provide the lateral support system to the second-floor level.

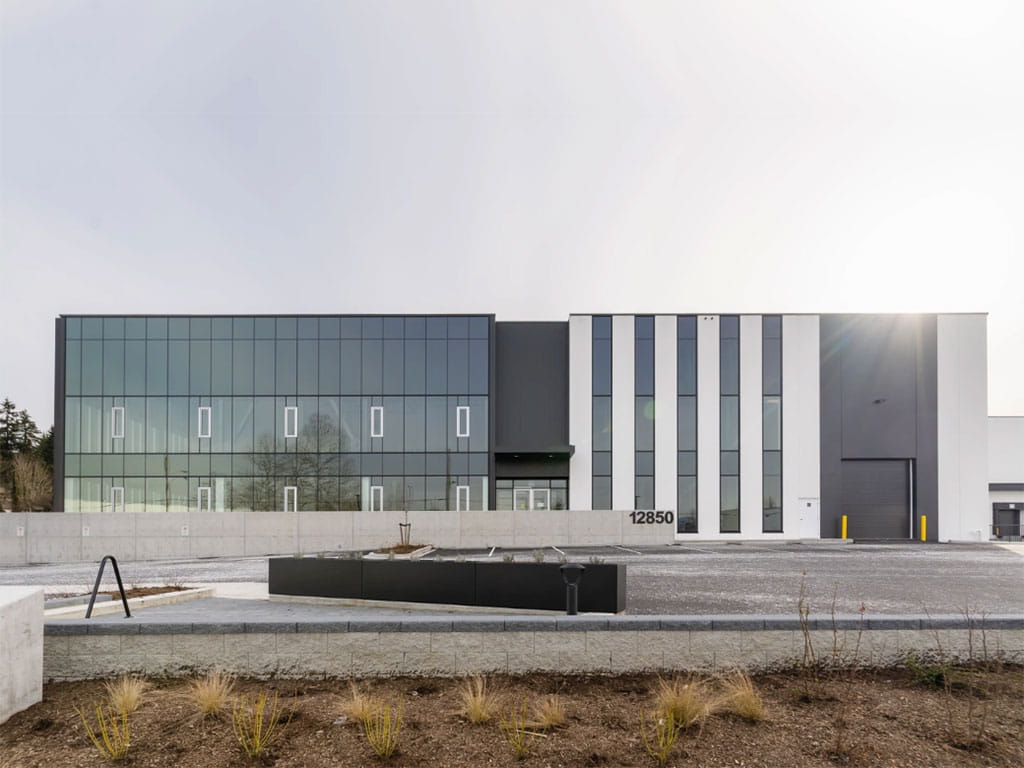

Bridgeview is a brand-new 109,820 sq.ft. state-of-the-art concrete tilt-up industrial building, situated on a high exposure corner lot in the heart of Metro Vancouver. This development is located in the Bridgeview industrial area of North Surrey and offers excellent exposure along King George Boulevard and Bridgeview Drive.

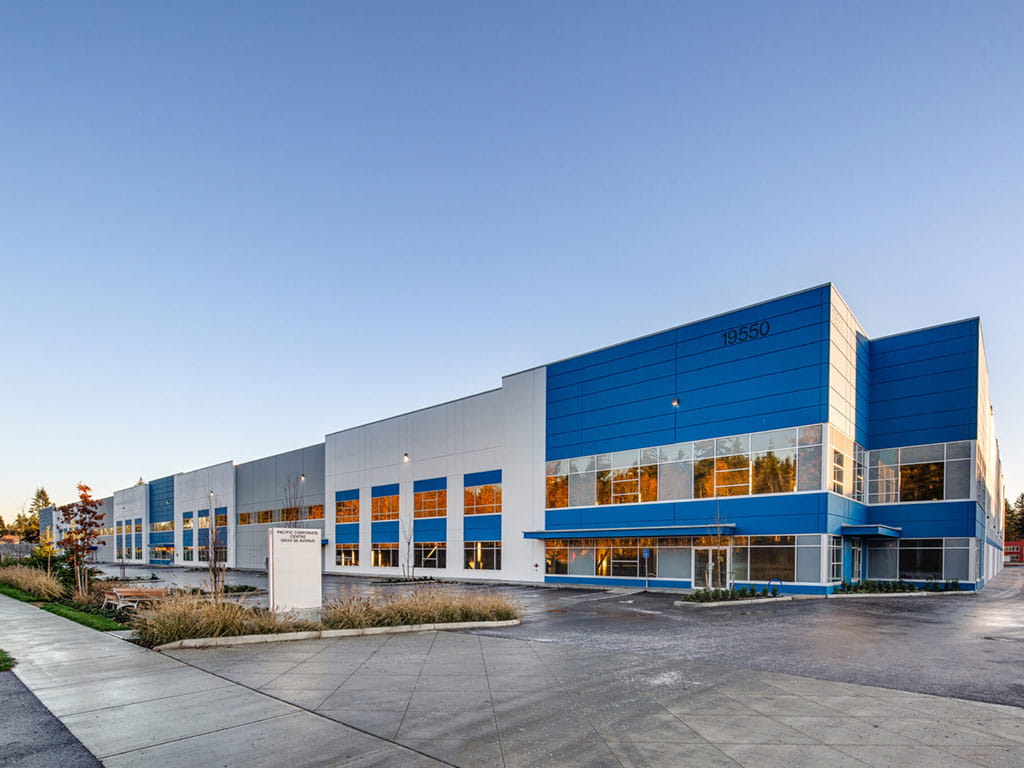

Pacific Corporate Centre is a 19 acre site in Surrey’s Campbell Heights. The development consists of two light industrial tilt-up buildings totaling 458,000 sq.ft. of space.

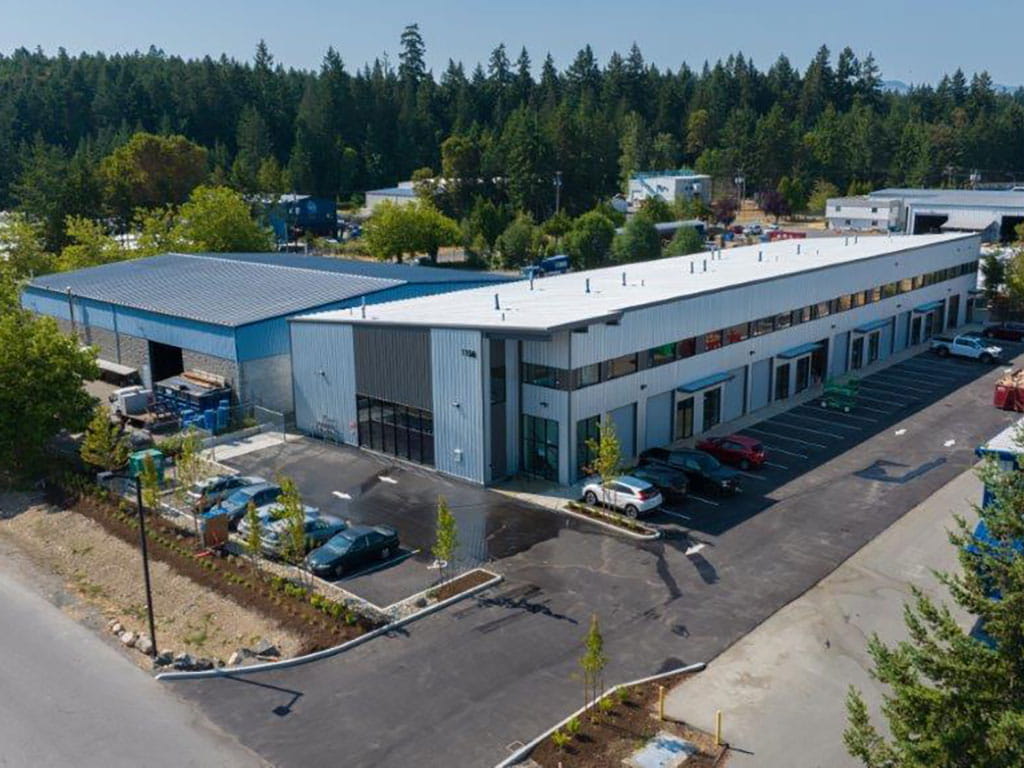

Parksville Industrial is a new multi-tenant industrial/commercial building located in the city of Parksville’s industrial park.
This development offers businesses the opportunity to lease high-quality warehouse space featuring excellent access/egress to Highway 19 and Highway 19A. Features include a new, modern pre-engineered steel industrial warehouse building; 2nd floor mezzanine, providing additional storage or potential office buildout, reserved parking for each unit, clear-span units, grade level loading per unit, 24’ clear height for warehouse and 14’ clear height under mezzanine.
The Krahn Group was hired by Clutch Contracting to design this new multi- tenant concrete tilt-up industrial building on the corner of Hume Road and Brown Street in the popular Tilbury Industrial area of Delta, BC. This building features 7 grade loading doors, 24’ clear ceiling height, and LED lighting.
The project consists of a concrete tilt-up warehouse and distribution facility made up of 4 industrial units to be approximately 20,000 sq.ft. each.
The Krahn Group was hired by Beedie Construction Ltd. to design this concrete tilt-up industrial building in the Gloucester Industrial Park located in Langley, BC. The building also includes a two level office area.

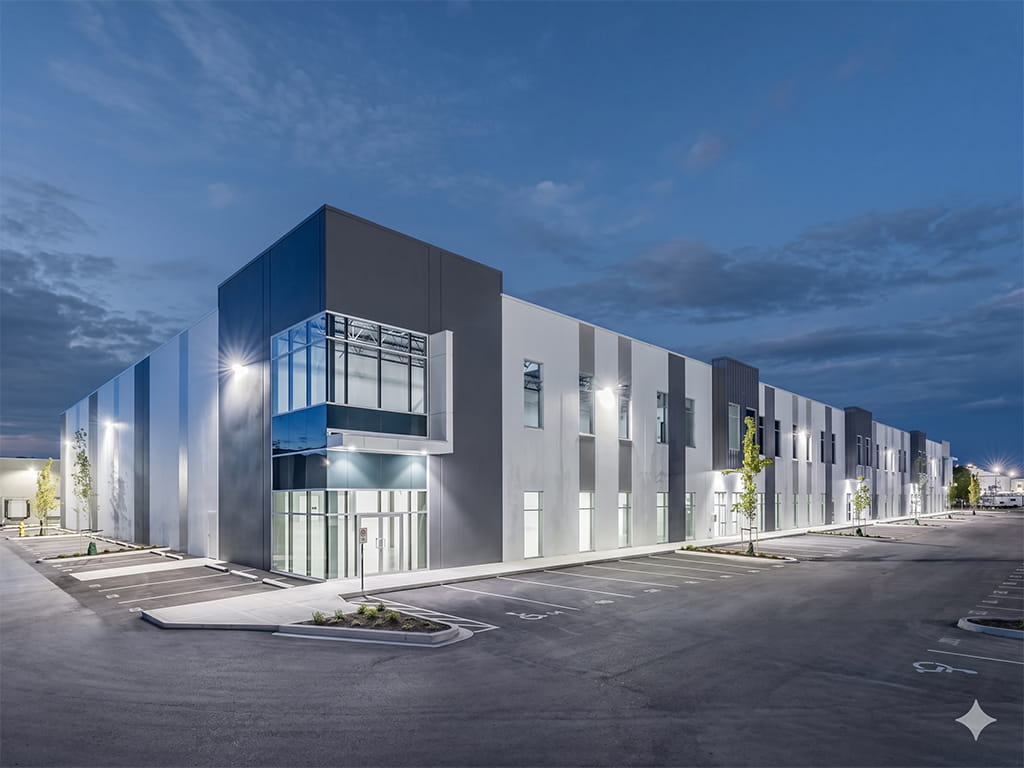

This development consists of two buildings comprising of 26 modern and functional warehouse units in the Dominion Triangle neighborhood in Port Coquitlam, BC, Canada. The combined area for both buildings is 65,315sq.ft. The gravity system is provided by the tilt wall panels to the perimeter of the building with a combination of internal structural steel framing consisting of beams and columns supported off reinforced concrete foundations and internal tilt wall panels supported off strip and pad foundations providing support to the open web steel joists and metal roof decking. The ground floors consist of 6” thick slab on grade. Tilt wall panels to the exterior and interior of the buildings provide the lateral support system.
The second-floor structure was constructed using wood TJI joists supported off a combination of interior stud partition walls, glulam beams and columns and the building tilt wall panels providing support to the plywood floor sheathing.
Due to the width of both building being approximately one fifth of the length of the buildings, the tilt wall panels on the short elevations and the interior of the buildings required hold down anchors to be provided to the panel ends and the foundations to deal with the seismic uplift forces.
