PHL Capital Office Building in Langley

Office
8045 - 198A Street, Langley, BC

The project consists of two 4-storey office buildings over top of two levels of underground parking. Total floor area for Building 1 is 57,000 sq.ft. and Building 2 is 76,000 sq.ft.

LPA Inc (now KP Architecture Ltd.)
Office
2023 - Design Stage
133,000 sq.ft.

East Newton Industrial

Industrial
15355 - 68th Avenue, Surrey, BC

This development consists of approximately 71,000 sq.ft. concrete tilt-up multi dock loading warehouse with 17,150 sq.ft. second floor office space in the East Newton industrial area in Surrey, BC. The gravity system is provided by the tilt wall panels to the perimeter of the building with a combination of internal structural steel framing consisting of beams and columns supported off reinforced concrete foundations and internal tilt wall panels supported off strip and pad foundations providing support to the open web steel joists and metal roof decking. The ground floors consist of 7” thick slab on grade. Tilt wall panels to the exterior and interior of the buildings provide the lateral support system.

The second-floor structure was constructed using open web steel joists and steel beams supporting the composite metal deck and concrete floor slabs. A combination of structural steel braces and the tilt wall panels provide the lateral support system to the second-floor level.

Industrial
Completed 2023
71,000 sq.ft.

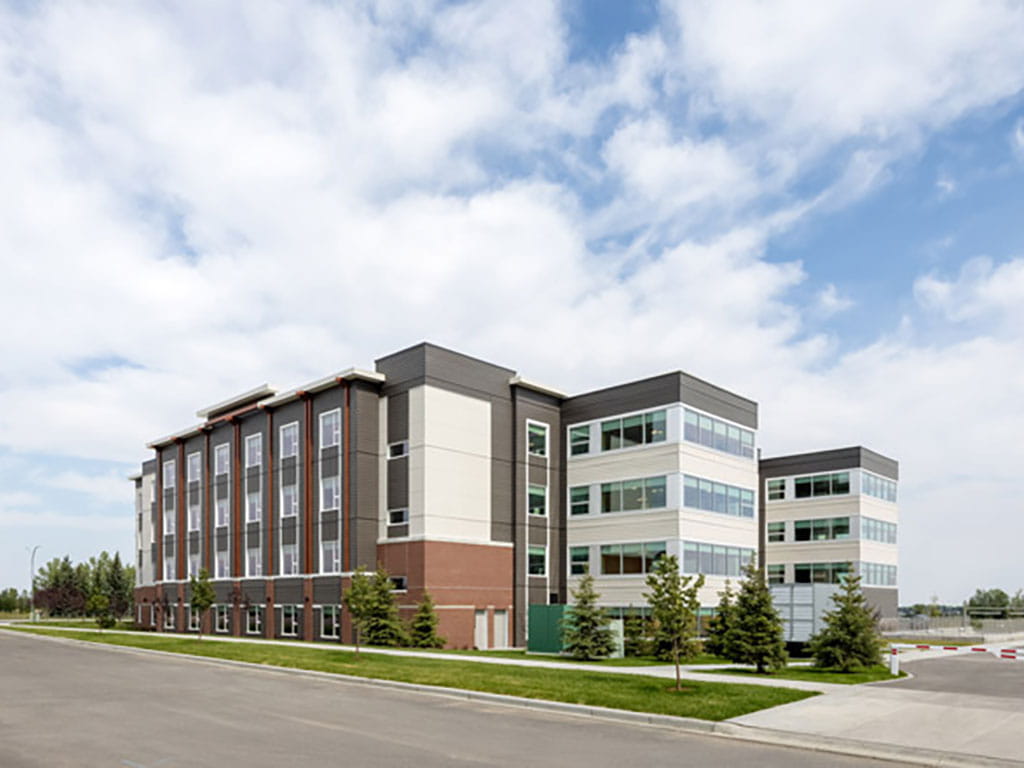

Silverado Seniors Village

Senior Living
#7 - 190th Avenue SE, Calgary, AB

Silverado is a Senior Care Facility located on a 1.48-hectare site which was developed in 2 phases. Phase 1 consists of a 4 storey building with an area of 85,751 sq.ft. and 129 units.

Senior Living
Completed 2023
85,751 sq.ft. (Phase 1)

Bridgeview Industrial

Industrial
12850 - 112B Avenue, Surrey, BC

Bridgeview is a brand-new 109,820 sq.ft. state-of-the-art concrete tilt-up industrial building, situated on a high exposure corner lot in the heart of Metro Vancouver. This development is located in the Bridgeview industrial area of North Surrey and offers excellent exposure along King George Boulevard and Bridgeview Drive.

Industrial
Completed 2023
109,000 sq.ft.

Pacific Corporate Centre

Industrial
19543 - 34A Ave, Surrey, BC

Pacific Corporate Centre is a 19 acre site in Surrey’s Campbell Heights. The development consists of two light industrial tilt-up buildings totaling 458,000 sq.ft. of space.

Industrial
Completed 2023
458,000 sq.ft.

Epcor Goldbar Wastewatertreatment Plant Hvac Upgrades

Cold Storage
Edmonton, AB

This project involves the renovation and addition to an existing building on the Goldbar site. Our team provided the structural, mechanical, electrical, and civil engineering services for this significant renovation project. The project includes the addition of a control room, converting existing offices and support spaces into change rooms, new office spaces, and classroom areas. Additionally, sprinklers will be added to the entire building.

Our mechanical team designed the new HVAC, sprinkler, plumbing systems, service upgrade, and BMS for the building. To ensure the new systems will support the building operations our team conducted a thorough analysis of the existing system for capacity to ensure it’s ability to handle the increased loads. The new mechanical systems are designed to tie into the existing infrastructure including the existing sanitary and storm sewer, HVAC systems, and the addition of new water service to the building. KD Mechanical’s scope also included:

  • A new controls system for the building to connect to the existing site wide controls system.
  • A new HVAC unit to serve the control room which operates 24/7.
  • New water heaters.

KM Civil’s scope included the following:

  • Review of existing utilities alignments onsite and offsite.
  • Review of stormwater Management requirements and overland drainage for the development.
  • Integrate and accommodate new building into the existing infrastructure.
  • Provide new water service connection to the building.
  • Provide design for new raised pararamp into the building.
  • Construction Administration and Field Reviews.
Cold Storage
Completed 2023
- not available -

Lordco Warehouse

Industrial
1515 & 1491 Kingsway Avenue, Port Coquitlam, BC

This development consists of a new state of the art three storey head office, warehouse and distribution facility which includes a fully equipped fleet maintenance repair garage, a welding & maintenance facility and dedicated flammable liquid storage and paint-mixing rooms. The 3-storey office building was constructed using a combination of structural steel moment frames and tilt wall panels (supported on reinforced concrete foundations) which provided both the gravity and lateral support systems to the office portion of the building. Open web steel joists and steel beams provided support to the metal deck at roof level. The floor structure at second and third floor was constructed using open web steel joists and steel beams supporting the composite metal deck and concrete floor slabs. The height of the tilt wall panels to the office area were predominately 48ft tall rising up to 53ft at certain locations. A secondary steel frame, fixed back to the main structure was used to support the overhanging glazing, canopies and cladding systems employed to the front and the side of the building. The office component also included a full height atrium to accommodate the feature spiral stairs under the 540sq.ft. skylight and a second-floor external patio. The warehouse and distribution facility consists of a floor area totaling approximate 344,450sq.ft. with a clear height of 32ft which was a requirement for the racking which consisted of both automated and manual multi-level picking modules. Tilt wall panels to the exterior and interior of the building provide the lateral support system with the combination of tilt wall panels and structural steel frame on reinforced concrete foundations providing the gravity system supporting the open web steel joists and metal roof deck.

This building won the Tilt-Up Achievement Award in 2022.

Industrial
Completed 2022
355,000 sq.ft.

Labatt Welterweight Expansion

Cold Storage
10119 - 45th Ave NW, Edmonton, AB

This project consists of an approximately 124,465 sq.ft. new addition to the Labatt Brewery facility in Edmonton, AB. The addition includes a new production area, a new RTD area, interior storage and tank rooms, a warehouse area complete with a Logistics office and mezzanine, and an exterior Alcohol Tank Storage building. The project also includes the demolition of the north canopy of the existing Prairie Sales Office, the removal of the existing PH Control Building to be replaced with a new PH Control Building, and the relocation of underground services for the entire site.

Cold Storage
Completed 2022
124,465 sq.ft.

Habitat For Humanity Townhouses

Townhouses
32588 Cedar Valley Connector, Mission, BC

Krahn Group was hired by Habitat for Humanity to design this 19 unit low-income townhouse development in Mission, BC. These homes are centrally located on 32588 Cedar Valley Connector which is close to three schools and accessible to public transit.

We are very proud to be apart of this important project for the community of Mission.

Townhouses
Completed 2022
15,500 sq.ft.

Pockit Self Storage

Self Storage
1305 East 7th Avenue, Vancouver, BC

This four-storey self storage building is a virtual zero lot line development in east Vancouver fronting Clark Drive. It is extremely efficient in space utilization and resolves significant challenges in planning this light industrial use in direct proximity to a residential neighbourhood. It is a very minimalist and modern building design well suited to its urban context. The principal materials are insulated metal panels, conventional steel construction and curtainwall.

Self Storage
Completed 2022
77,500 sq.ft.
